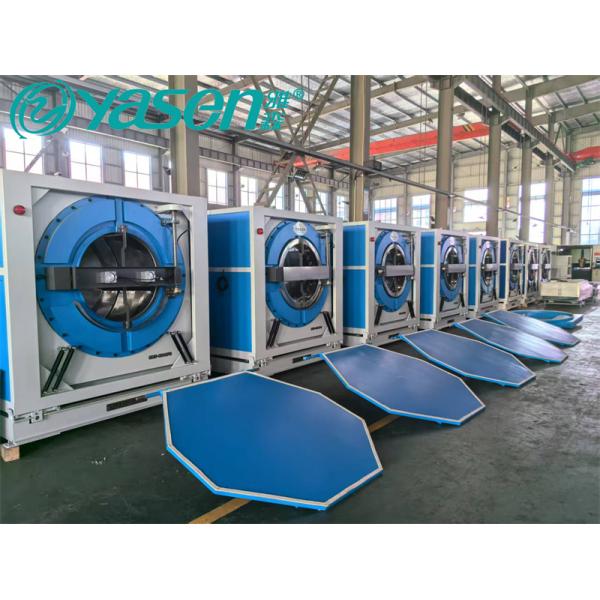

This customizable washer extractor system is designed for high-volume laundry operations requiring automated workflow integration. The system features modular components and programmable logic controllers to accommodate specific load capacities, fabric types, and processing sequences. It supports integration with automated chemical injection, material handling, and data management systems. The design focuses on optimizing water and energy efficiency while maintaining consistent wash quality and operational reliability.
Technical Parameters
| Technical Parameter | Unit | SXT-1300FS | SXT-1500FS |
| Rated Capacity | kg | 130 | 130 |
| Front Tilt Angle | ° (Degree) | 25° | 21° |
| Rear Tilt Angle | ° (Degree) | 25° | 26° |
| Cylinder Diameter | mm | 1300 | 1470 |
| Cylinder Depth | mm | 980 | 880 |
| Washing Speed | rpm | 35 (Variable) | 32 (Variable) |
| High-Speed Extraction Speed | rpm | 650 (Variable) | 610 (Variable) |
| Power Supply | V/Ph/Hz | 380/3/50 | 380/3/50 |
| Main Motor Power | kW | 11 | 15 |
| Heating Method |
| Steam | Steam |
| Steam Pipe Diameter | inch | G1″ | G1.5″ |
| Steam Pressure | MPa | 0.4-0.6 | 0.4-0.6 |
| Cold/Hot Water Pipe Diameter | inch | G2″ | G2″ |
| Cold/Hot Water Pressure | MPa | 0.3-0.5 | 0.3-0.5 |
| Drain Outlet Diameter | mm | Φ127*2 | Φ140*2 |
| Compressed Air Pressure | MPa | 0.6-0.8 | 0.6-0.8 |
| Noise Level | dB(A) | ≤75 | ≤75 |
| Net Weight | kg | 4500 | 6800 |
| Overall Dimensions (W*D*H) | mm | 2070*2400*2085 | 2520*2380*2612 |
Application Scenarios:
- Hospitality Linen Processing
- Healthcare Textile Services
- Uniform Rental Operations
- Food & Beverage Laundry
- Correctional Facility Laundry
- Sports & Fitness Club Towel Services
Q&A: Customizable Washer Extractor System
Q: What is the core function of a Customizable Washer Extractor System?
A: It provides automated, high-volume washing and moisture extraction, tailored to specific operational requirements through programmable controls and modular components.
Q: How does the Customizable Washer Extractor System integrate with existing laundry workflows?
A: It is engineered for compatibility with automated material handling, chemical dispensing, and data management systems via standardized interfaces and programmable logic controllers (PLCs).
Q: What aspects of the Customizable Washer Extractor System can be adapted for different facilities?
A: Key customizable aspects include load capacity (e.g., 50-200 lb models), cycle programming for various soil levels and fabric types, and optional features like reverse-axis tilting or specialized rinse configurations.
Q: What are the primary efficiency benefits of implementing a Customizable Washer Extractor System?
A: The system is designed to optimize utility consumption, specifically reducing water usage per pound of laundry and lowering thermal energy requirements through advanced heat recovery and rinse cycle management.
Q: What level of operational data can be monitored with a Customizable Washer Extractor System?
A: The system typically provides data on cycle completion, utility consumption (water, gas, electricity), chemical usage, and production throughput for performance analysis and reporting.
